Input:2/4/6/8/10/12 tuner, 2 ASI Tuner supports:DVB-S2/DVB-C/DVB-T/ATSC/ISDBT/DTMB Output:2ASI IP Protocol:UDP and RTP Maximum PID Remapping:180 output PID per channel Support PID Remapping/ PCR accurate adjusting System function:Network management

GET A QUOTE

Description

Product Overview

YDS8812CI is a professional high integration device which includes tuner demodulation, multiplexing, CAM/card descrambling. It supports 2-12 tuner input (support different types of tuner ( DVB-S2, DVB-C, DVB-T, ATSC, DTMB, ISDBT, etc. ) input), support PCMCIA card descrambling, 1000M IP output, MPTS and SPTS output. In conclusion, its high integrated and cost-effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, digital TV broadcasting etc.

Key Features

1. Support 2-12 channels PCMCIA card descrambling, single module provides 2 channels ( 2 Tuner+2 PCMCIA slots ), a maximum of 6 modules support a total of 12 PCMCIA card channels. The tuner supports ( DVB-S2/DVB-C/DVB-T/ATSC/ISDBT/DTMB )

2. 1000M IP output over UDP and RTP protocol (8 MPTS and 512 SPTS)

3. 2 ASI inputs and 2 ASI Independent output

4. Support “Null PKT Filter” function

5. Support PID Remapping/ PCR accurate adjusting

6. PID pass

7. LCD, key function

8. Control via web management, and easy updates via web

Technical Specification

input	2/4/6/8/10/12 tuner; and the tuner supports (DVB-S2/DVB-C/DVB-T/ATSC/ISDBT/DTMB)
	2 ASI inputs
output	2 ASI output
	IP output（512 SPTS and 8 MPTS）IP output over UDP and RTP protocol
Multiplexing	Maximum PID Remapping	180 output PID per channel
	Function	PID remapping (automatically or manually)
		Accurate PCR adjusting
System function	Network management (WEB)
	Chinese and English language
	Ethernet software upgrade
Miscellaneous	Dimension(W×L×H)	482mm×410mm×44mm
	weight	5-9 kg
	Environment	0~45℃(work)；-20~80℃(storage)
	Power requirements	AC100~240V，50/60Hz
	Power dissipation	<90W

Note: A single module provides 2-channel PCMCIA card descrambling, and supports a maximum of 6 modules with a total of 12 PCMCIA card channels, the number of channels is optional as a multiple of 2.

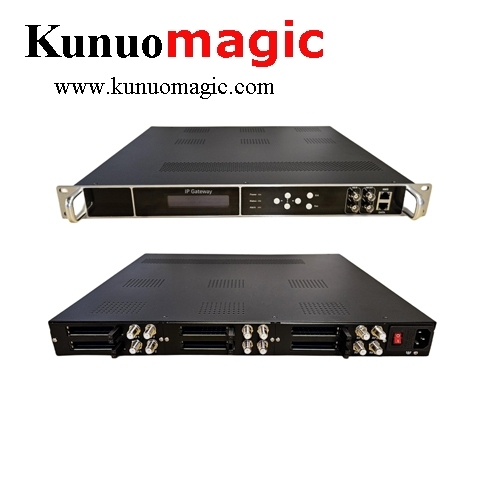

Front / Rear Panel

1.	LCD Display
2.	Buttons and Indicator lights
3.	ASI
4.	NMS、DATA Input/ output
5.	PCMCIA slots
6.	Tuner input
7.	Power
