up to 12 tuners DVB-T/T2 DVB-S2/S DVB-C DTMB and ATSC tuner to ip professional satellite receiver ird satellite tv receivers
dvb t2 conax HD satellite receiver 4k dvb-s2/S2X CI IRD digital tv receiver with 12 CI slots to receive paid channels

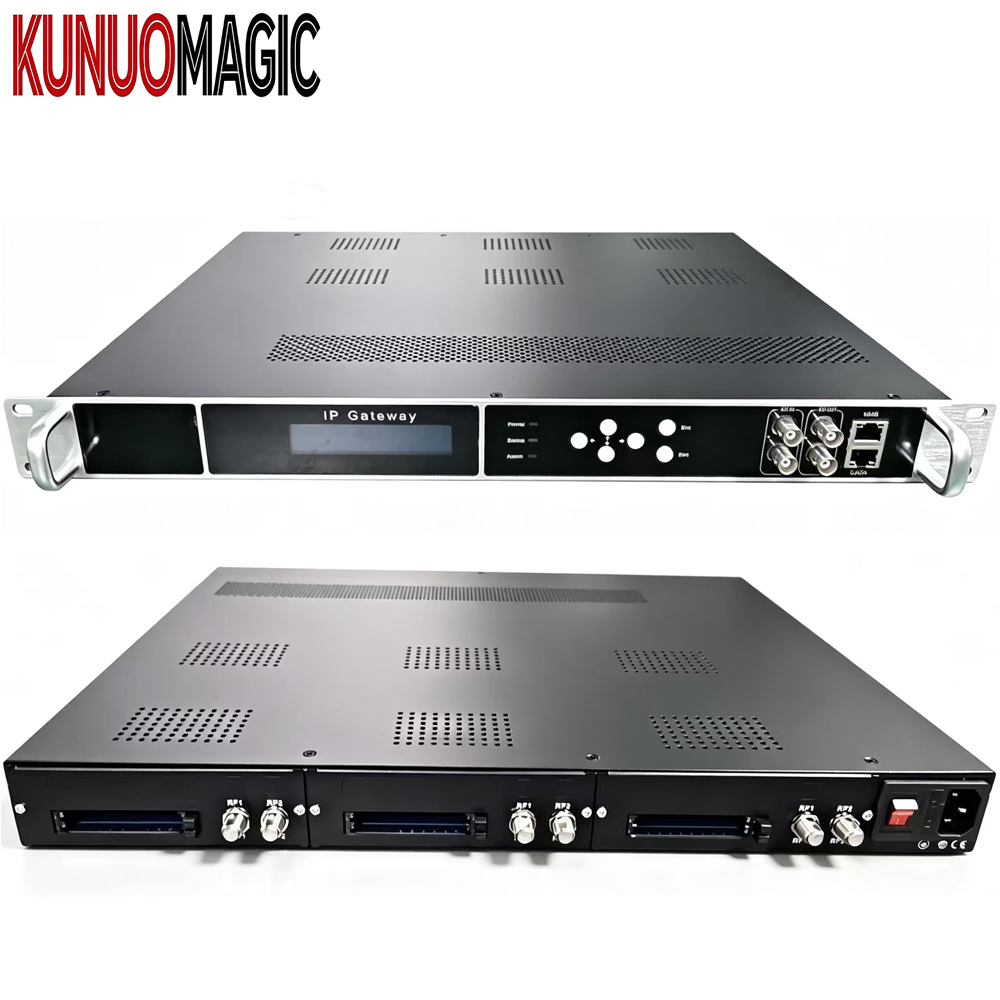

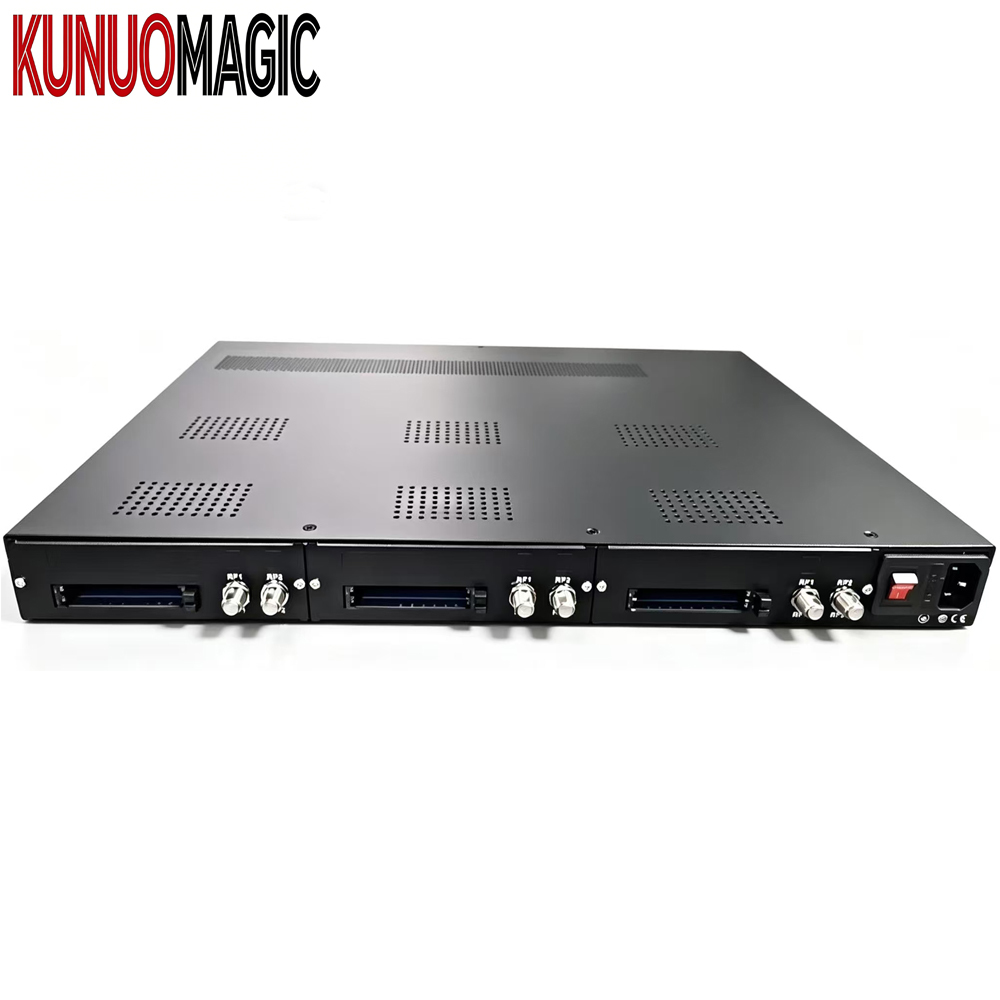

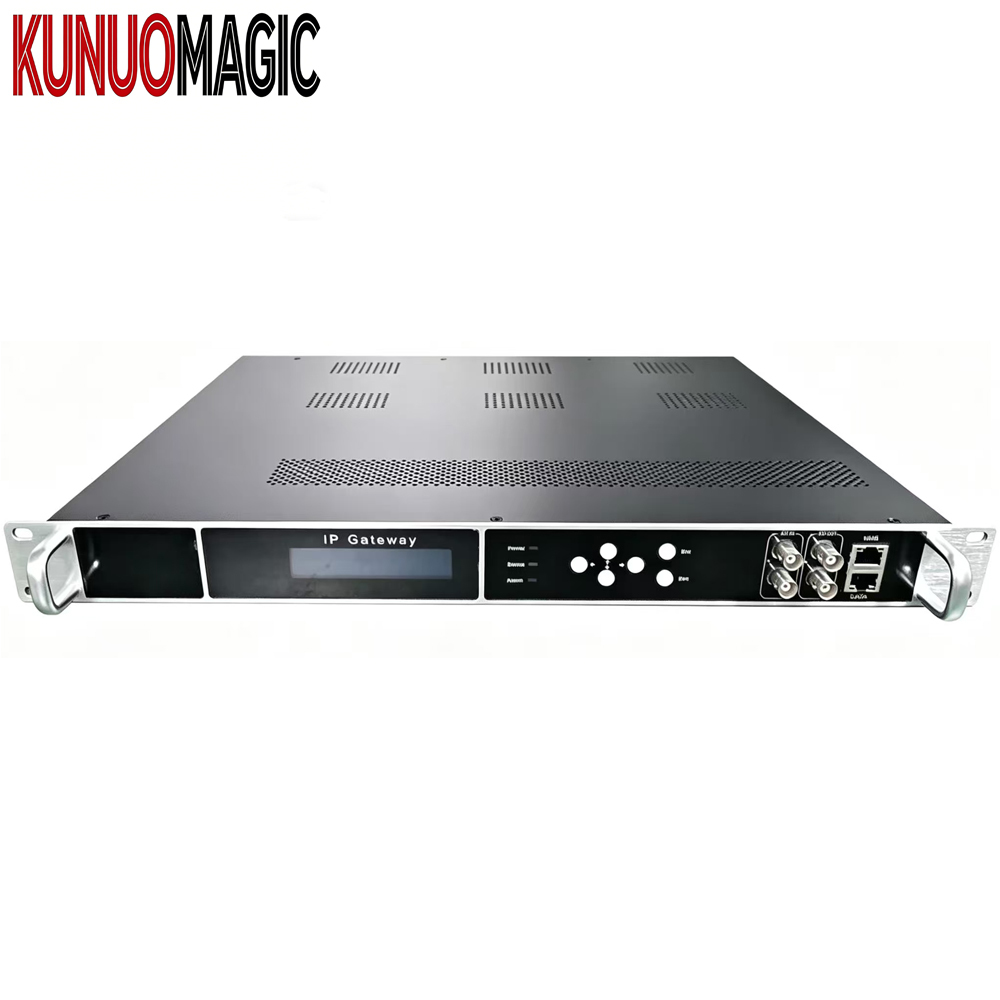

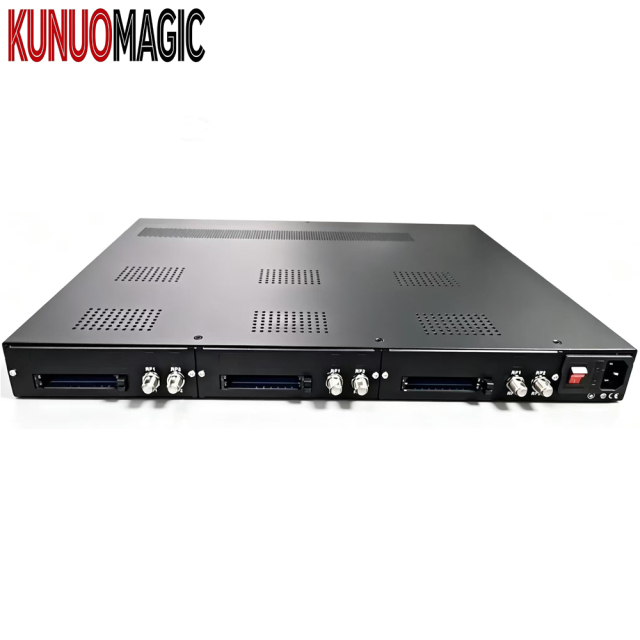

Professional 12 in 1 DVB-S2 HD CI IRD DVB-S2 Decoder Encrypted Channels Satellite Descrambler
|
CI Module |
||||
|
Number |
2 Tuners ports per module, Up to 6 Modules in Back panel, 2, 4, 6, 8, 10, 12 Channels |
|||
|
Tuners |
DVB-S2/S2X, ISDB-T, DVB-C, DVB-T/T2, DTMB, ATSC |
|||
|
Connecter |
F-female type |
|||
|
DVB-S/S2 Tuners |
||||
|
Input Frequency |
950-2150Mhz |
|||
|
Symbol rate |
2~45Mbauds(DVB-S QPSK) 1~45Mbauds(DVB-S2 QPSK) 2~30Mbauds(DVB-S2 8PSK) |
|||
|
Signal Strength |
- 65 ~ -25dBm |
|||
|
FEC Demodulation |
1/2, 2/3, 3/4, 5/6, 7/8(DVB-S QPSK) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (DVB-2 QPSK/8PSK) |
|||
|
Roll Off |
0.20; 0.25; 0.35(Only DVB-S) |
|||
|
Demodulation Mode |
DVB-S QPSK: 1/2, 2/3, 3/4, 5/6, 7/8 |
|||
|
LNB Polarity Selection Vol |
0, 13V, 18V Selectable |
|||
|
LNB Band Selection Tone |
0/22Khz Selectable |
|||
|
Input Impedance |
75 ohm |
|||
|
FEC (Code Rate) |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||
|
Satellite Selection |
Command DiSEqC 2.0 |
|||
|
ATSC Tuners |
||||
|
Frequency range |
50–860 MHz |
|||
|
Key reference specification |
ATSC A/53 |
|||
|
Input level |
-34 to +40 dBmV |
|||
|
Constellation |
8-VSB |
|||
|
Bandwidth |
6Mhz |
|||
|
DVB-C Tuner Input
|
||||
|
Connector Type |
8*F type female 75ohm for Input |
|||
|
Input Frequency Range |
51 ~ 862MHz |
|||
| Input Level | 51 ~ 75dBμV | |||
| Symbol Rate | 1 ~ 7MBaud (ITU J.83 Annex A, B, C) | |||
| Constellation | 16QAM, 32QAM, 64QAM, 128QAM,256QAM | |||
| Bandwidth | 6MHz, 7MHz, 8MHz | |||
| Input Return Loss | 7dB (typ.) | |||
| DTMB Tuner Input | ||||
| Connector Type | 8*F type female 75ohm for Input | |||
| Input Frequency Range | 46.5 ~ 866MHz | |||
| Input Level | -87 ~ -29dBm | |||
| Symbol Rate | 7.56MBaud | |||
| Bandwidth | 6MHz, 7MHz, 8MHz | |||
| Constellation | 4QAM-NR, 4QAM, 16QAM, 32QAM, 64QAM | |||
| Guard Interval | PN420, PN595, PN945 | |||
| Roll-off Factor | 0.05 | |||
| Interleaving Depth | 240, 720 | |||
| FEC Code Rate | 0.4, 0.6, 0.8 | |||
| DVB-T/T2 Tuners | ||||
| Frequency Range | 30MHz-1000Mhz | |||
| Bandwidth | 6Mhz, 7Mhz, 8Mhz | |||
| Level | -87 ~ -20dBm | |||
| Constellation | QPSK, 16QAM, 64QAM | |||
| FEC Demodulation | DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8, DVB-T2:1/2, 3/5, 2/3, 3/4, 4/5, 5/6 | |||
| Guard Interval | DVB-T: 1/4, 1/8, 1/16, 1/32, DVB-T2:1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64, 1/128 | |||
| Tuner switchable | up to 24*tuner DVB-S/S2/C/T/T2 in ( no out) | |||
| ISDB-T Tuners | ||||
| Input frequency range | 30 ~ 900MHz | |||
| Bandwidth | 6MHz | |||
| Constellation | DQPSK, QPSK, 16QAM, 64QAM | |||
| Interleave | 0, 4, 8, 16 | |||
| Guard Interval | 1/32, 1/16, 1/8, 1/4 | |||
| Transmission Mode | 2K, 4K, 8K (FFT) | |||
| FEC (Code Rate) | 1/2, 2/3, 3/4, 5/6, 7/8 | |||
|
DVB-ASI inputs |
||||
|
Connector |
BNC female, 75ohm |
|||
|
Signal Level |
200-800mVp-p |
|||
|
Packet Length |
188 bytes |
|||
|
Maximum bit-rate per port |
≤100Mbps |
|||
|
Number of Input Ports |
Dual separate ASI ports |
|||
|
Multiplexing |
||||
|
Maximum PID Remapping 180 input per channel PID remapping by automatically or manually |
||||
|
PSI/SI |
SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert Accurate PCR adjusting |
|||
|
Max Numbers |
4 mux for RF and 1 Mux for MPTS IP out in Modulation 4 Mpts IP out In Tuners gateway |
|||
|
Stream Output |
||||
|
DVB-ASI |
2 Separate ASI, 75ohm, BNC, 188Bytes |
|||
|
RJ45 Port |
100/1000M GbE Port Simultaneous output with 256* SPTS and 4*MPTS |
|||
|
(Note: In modulation . Only 1 * MPTS) MPEG-2 TS over UDP, unicast, and multicast streaming MPEG-2 TS over RTP/RTSP Configurable packet size(2-7)x188Bytes Filter Null Packet |
||||
|
SPTS limit selectable |
2.3M, 2.5M, 2.9, 3.3M, 3.8M, 4.6M, 5.7M, 7.6M, 11.5M, 23M |
|||
|
Modulation Part |
||||
|
Connector |
1 Port, F-Type, 75 |
|||
|
Output Return Loss |
14 dB |
|||
|
MER |
≥40dB |
|||
|
RF output level |
-30 ~ -10dbm,0.1db step |
|||
|
RF frequency |
47-860Mhz, 1KHz step |
|||
|
Numbers of RF Channel |
4, 8/16(optional), 32(optional,only for DVBC) |
|||
|
Modulation Mode |
4/16/32*DVB-C, 4/8/16*DVB-T, 4/8/16*ATSC,4/8/16* ISDB-T, 4/8/16*DTM |
|||
|
DVB-T Standard |
EN300744 |
|||
|
FFT mode |
2K, 8K (4 RF mode only support 2K) |
|||
|
Bandwidth |
6M, 7M, 8M |
|||
|
Constellation |
QPSK, 16QAM, 64QAM |
|||
|
Guard Interval |
1/4, 1/8, 1/16, 1/32 |
|||
|
FEC |
1/2, 2/3, 3/4, 5/6, 7/8 |
|||
|
DVB-C Standard |
J83.A (DVB-C, J83.B, J83.C) |
|||
|
Carrier |
ANNEX A |
Annex B |
Annex C |
|
|
Constellation (QAM) |
16,32,64,128, 256 |
64 |
256 |
64/256 |
|
Bandwidth (Mhz) |
8 |
6 |
6 |
6 |
|
Symbol Rate (Mbaud) |
5-7 |
5.057 |
5.361 |
4.2-5.3 |
|
ISDB-T Standard ARIB STD-B31 |
||||
|
Constellation |
DQPSK, QPSK, 16QAM, 64QAM |
|||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|||
|
Transmission Mode |
2K, 4K, 8K |
|||
|
Guard Interval |
1/32, 1/16, 1/8, 1/4 |
|||
|
Code rate |
1/2, 3/4, 5/6, 7/8 |
|||
|
BandWidth |
6Mhz |
|||
|
ATSC Standard 6Mhz |
ATSC A/53 |
|||
|
Constellation |
8 VSB |
|||
|
DTMB Standard |
GB20600-2006 |
|||
|
Constellation |
4QAM, 16QAM, 32QAM, 64QAM |
|||
|
Code rate |
0.4, 0.6, 0.8 |
|||
|
Guard Interval |
420, 595, 945 |
|||
|
System |
||||
|
Local interface |
LCD + control buttons |
|||
|
Remote management |
Web/NMS |
|||
|
NMS interface |
RJ45, 100M |
|||
|
Language |
English |
|||
|
Environment |
||||
|
Voltage range |
100 to 120/200 to 240V AC ±10%; 50/60Hz |
|||
|
Power consumption |
60W |
|||
|
Operation Temperature |
0 ~ 45℃ |
|||
|
Storage Temperature |
-20 ~ 80℃ |
|||
|
Dimensions |
482mm (L) * 380mm (W) * 44mm (H) |
|||
|
Weight |
4.5 kg |
|||
