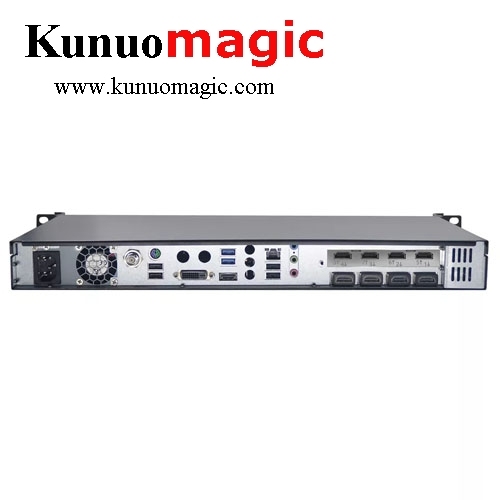

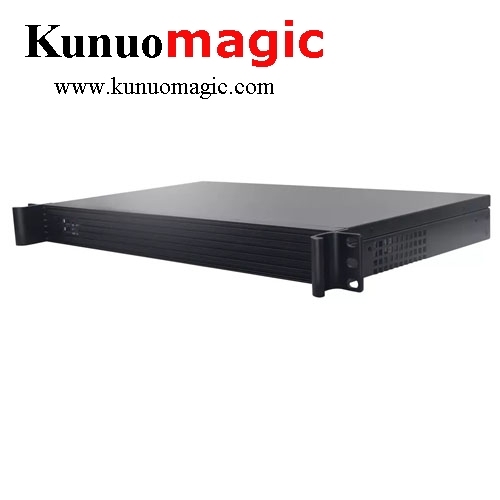

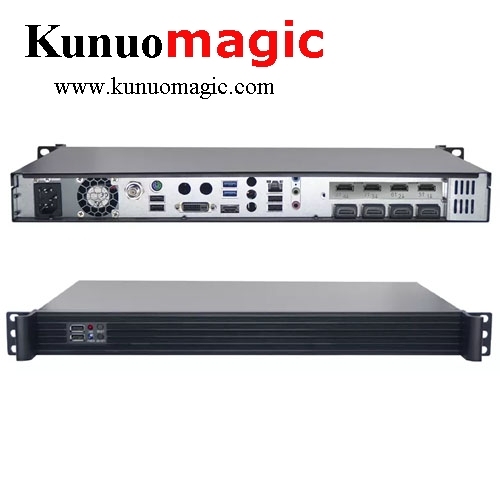

YNS-8000HR Eight-Channel HD HDMI Encoder highly integrated hardware and software. With 8 channels HDMI input, by real-time H.264 encoding, output RTMP/HTTP/RTP/UDP Standard TS & ASI for DVB-C/DVB-T/DVB-S/S2 system.
YNS-8000HR is convenience for you to send streaming to IPTV Media Streaming Server, such as wowza, Xtream Codes, or DVB modulators.
YNS-8000HR by compare with 2 STBs' HDMI input signals, automatically detect & hide the different video contents, such as the hashcode/video logo/watermark, etc.. (2 HDMI input, 1 stream output) *1, Two STBs' output HDMI must be same channels (programs), and STB need to be same brand, same settings.
YNS-8000HR only support output 4 hashcodes remove streams when do compare for hiding watermark.
YNS-8000HR will greatly save the network traffic, electricity and space utilization rate, improve the live operator front-end equipment reliability, reduce operating costs and entry barriers
Key Features:
8 channel HDMI capture, real-time HD encoding
Add/Remove water-mark dynamically 4 channel simultaneously from 8 channels
Providing Multiple Protocol RTMP/UDP/HTTP/RTP
Support 1280*720P@50/60, 1080i@50/60 resolution input, output ASI &RJ45 100/1000Mbps
Support multiple equipments display at the same time on a computer
1U chassis , low power consumption, less than 70W
Greatly save on network traffic, electricity and space usage
Technical Specifications:
|
Item |
Description |
|||
|
Basic Parameters |
||||
|
Input Interface |
8 x HDMI |
|||
|
Output |
ASI & RJ45 100/1000Mbps |
|||
|
HD format |
1280x720p@50/60, 1080i@50/60 |
|||
|
Protocol |
RTMP/UDP/HTTP/RTP |
|||
|
AC in |
110/220 |
|||
|
AC rate |
50/60Hz |
|||
|
Power consumption |
Less than 70W |
|||
|
OS |
Cent OS |
|||
|
Size |
1U chassis |
|||
|
Weight |
4.5kg |
|||
|
HDMI Input & The suggestion streaming quality as below |
||||
|
HDMI Input |
Stream Quality |
Stream Resolution |
||
|
1080i@50/60 |
Super |
1920*1080P@25/30 |
||
|
Ultra |
1440*1080P@25/30 |
|||
|
720P@50/60 |
Excellent |
1280*720P@25/30 50/60 |
||
|
Good |
1120*630P@25/30 50/60 |
|||
|
Fair |
960*540P@525/30 50/60 |
|||
|
Poor |
800*468P@25/30 50/60 |
|||
|
Mobile |
480*270P@25/30 50/60 |
|||
|
|
|
|
|
|
Basic Functions:
Accessores - Virtual HDMI Display Adapter
Virtual HDMI Display Adapter is a device to cheat the computer connected with a HDMI display, when our Encoder connected by Teamviewer or your HDMI display not always on, you can connect it to encoder display port instead of HDMI display.
