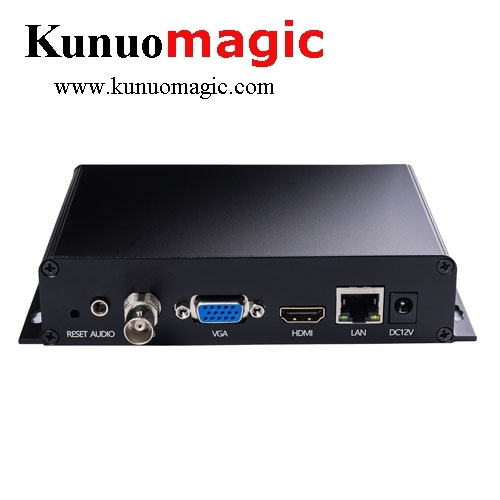

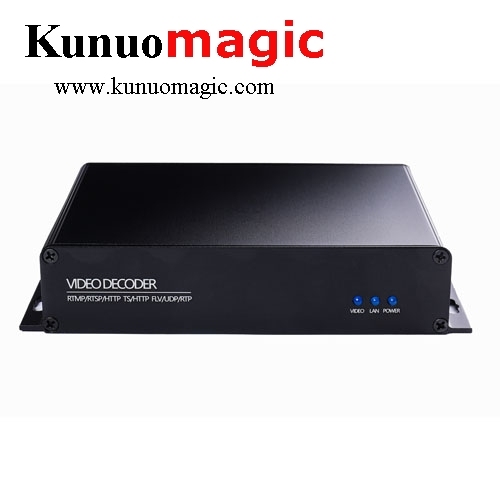

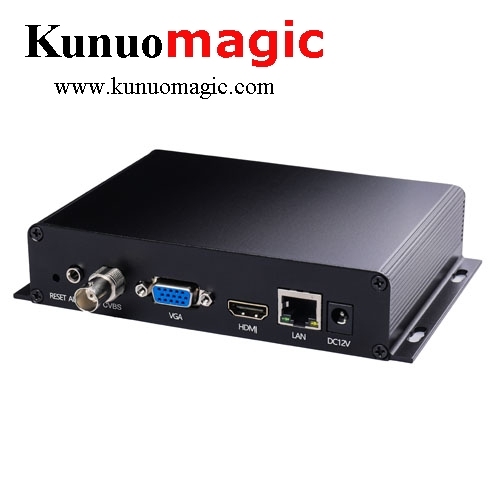

4K HDMI Video Transcoder Decoder Support RTSP RTMP RTMPS SRT H.265 HEVC UDP Transcoder

No.Anystream1000
Input:HTTP/RTSP/RTMPS/SRT/UDP/RTP/ONVIF/HLS
Output:HTTP/RTSP/RTMPS/SRT/UDP/RTP/ONVIF/HLS
Video Decoding:H.265/Hevc,H.264/Mpeg4 Audio Decoding:AAC,MP3,MP2,AC3,G.711
Warranty:5 Years Warranty,Free Lifetime Technique Support
  • 4K HDMI Video Transcoder Decoder Support RTSP RTMP RTMPS SRT H.265 HEVC UDP Transcoder
  • 4K HDMI Video Transcoder Decoder Support RTSP RTMP RTMPS SRT H.265 HEVC UDP Transcoder
  • 4K HDMI Video Transcoder Decoder Support RTSP RTMP RTMPS SRT H.265 HEVC UDP Transcoder

Description

Overview

Anystream1000 is a new generation HD H.265 HEVC Video Streaming Decoder & Transcoder which adopts state-of-the-art decoding technology of H.265/HEVC, H.264/Mpeg4, supporting RTSP/RTMP/UDP/SRT/HLS/HTTP/FLV protocol IP input, decoding it to HDMI and CVBS output,
also supporting output IP can be different protocol, realize decoding& transcoding high integration.

Anystream1000 HD H.265 HEVC Video Streaming Decoder & Transcoder is able to send streams via a series of IP protocols, like HTTP RTSP UDP unicast UDP multicast RTP RTMP HLS, SRT, etc., can also decode IP stream (eg: rtsp://.., http://..., rtmp://…, udp://@...,hls,etc.) to output HDMI/CVBS at the same time and then connected to the monitor or TV via HDMI out to display the image, and support 1 channel external sound output synchronization, then output with various IP protocols synchronization. After the IP
stream is decoded, the sound can be connected to the sound box or the power amplifier from the sound interface of the 3.5mm.

Anystream1000 HD H.265 Video Streaming Decoder & Transcoder can be used for Surveillance Camera, decoding, transcoding, push streaming and live broadcasting. It can decode the resolution up to 4K 60pfs,and transcoding resolution support 1080P 60fps. With cost-effetive solution, it is a ideal product for IPTV system projects.

With embedded operating system, Anystream1000 HD H.265 Video Streaming Decoder & Transcoder possesses the features of stability,reliability, powerful function, network agility, develop malleability, which makes it a new generation HD network media terminal.It’s Low Power Consumption physical design, with decoding in compact size, benefit customers for more flexible to use,and avoid the trouble of gathering multiple devices.

Main Features

* Up to UHD 4K 60fps decoding output

* Up to Full HD 1080P 60fps transcoding output

* HDMI+CVBS output simultaneously

* Decoding video format: H.264, H.265, Mpeg4, Mpeg2, CAVS

* Transcoding video format: H.264, H.265

* Input/output streams support to work under SRT/HTTP/HLS/RTSP/RTP/RTMP, HTTP/UDP unicast, multicast, etc. (Username and password
verification are allowed under RTMP)

* Dual-channel(Main and sub streaming output), Main and sub streaming can be set as different resolution and IP protocol, perfect
products for multi-screen, multi-protocol, multi-resolution application

* Low bit-rate by H.265 with high quality image

* Any iOS browsers(iphone, ipad, MacBook etc) are able to have streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS
protocol without install any software players.

* Any terminal devices/decoders are able to have streams from IPTV Streaming Encoder directly by RTMP protocol with software
players(such as VLC)
* Support transcoding function, change IP input/output, protocol, compression format (H264 to H265, H265 to H264), resolution,etc.

* Audio format: MP3, MP2, AAC, AC3; sampling rate: 44.1 KHz.

* Transport method: TCP,UDP,1000M (RJ45 duplex interface)

* Web-based management easy for configuration.

* Scrollable English OSD, picture overlapping and logos are realizable while letters and symbols can be displayed anywhere in the
screen

* Allowing DHCP to automatically obtain IP, offering one key recovery & upgrading and remote maintenance

* Image setting: Contrast, brightness, hue, saturation, noise inspection, sharpness, wave filtering

* The setting comes into effect once finished while reboot is unnecessary

* Default configuration can be done by one key recovery
Specifications
Media Access
Standard protocol: RTSP/HTTP TS/HTTP FLV/RTMP/UDP
Private protocol: HTTP PTE
Decoding
Video Decoding
Video type: H.265/H.264/MJPEG/MPEG2/MPEG4/AVS/AVS2
Frame rate: 1~60fps
Resolution: Max. support 4K 60fps
Audio Decoding
Audio Type : AAC/AAC_AT/AAC_FIXED,
AAC_LATM/AASC/AC3/AC3_AT/AC3_FIXED/G729/GSM/
GS_MS/GSM_MS_AT/MP1/MP1_AT/MP1FLOAT/
MP2/MP2_AT/MP2FLOAT/MP3/MP3_AT/MP3ADU/MP3ADUFLOAT/MP3FLOAT/MP3ON4/MP3ON4FLOAT/PCM_ALAW/PCM_MULAW/ADPCM_G726
Sampling rate: 44.1 KHz.
Video Output
HD MI: 4096x2160P60/4096x2160P50/4096x2160P30/4096x2160P25
/3840x2160P60/3840x2160P50/3840x2160P30/3840x2160P25
/1440P60/1920x1200P60
/1080P60/1080I60/1080P50/1080I50/1080P30/1080P25
/720P60/720P50/576P50/480P60
CVBS: PAL/NTSC
Image setting: Contrast,brightness,hue, saturation, noise inspection, sharpness, wave filtering
Audio Output
HDMI: 48KHz dual channel output3.5MM: dual channel output
Enable/disable
Transcoding
Video Encoding
Encoding type: H.264/H.265 optional
Encoding frame rate: 5-60 adjustable
Key frame interval (frame): 5-300 adjustable
Bit rate (kbit): 32-100000 adjustable
Resolution (after encoding) : 1920x1080/1680x1056/1600x900/
1280x720/1024x768/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480/352x228/320x256/320x240/320x180/240x180/176x144/customizable
H.264 level: PROFILE_BASELINE/PROFILE_MAIN/
PROFILE_EXTENDED/PROFILE_HIGH
Streaming Protocol: Support RTMP/RTMPS/RTSP/HTTP TS/
HTTP FLV/HLS/UDP multicast/RTP multicast/SRT
Audio encoding
Encoding sampling rate: 44100/48000 optional
Encoding type: AAC
Management
Configuration Interface: web-based UI Connector: RJ45
Support ONVIF to find and browse videos
The Working Environment
Power consumption
4w
Dimension
155(L)*93(W)*32(H)mm
Operating Temperature
-20 to 60 (For working), -20 to 80(For storing)
Input Voltage
12V/DC 2A
