| Input | 2 IP inputs (DATA1:RTMP/HTTP/RTSP/HLS/SRT input; DATA3: UDP/RTP input) | ||
| 6 ASI input | |||
| Output | RF output | 1 RF output interface, F-type connector, 75Ω impedance | |
| RF output 16 carrier（DVB-T/ATSC/ISDBT/DMBT）or 32 carrier（DVB-C）optional | |||
| IP output | 8 MPTS output（DATA2） | ||
| Modulation Mode | DVB-T | Standard | EN300744 |
| FFT | 2K | ||
| Bandwidth | 6M, 7M, 8M | ||
| Constellation | QPSK, 16QAM, 64QAM | ||
| Guard Interval | 1/4, 1/8, 1/16, 1/32 | ||
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||
| MER | ≥37dB | ||
| RF frequency | 96~864MHz, 1KHz step | ||
| RF output level | -35~ -5dBm, 0.1db step | ||
| DVB-C | Standard | EN300 429/ITU-T J.83A/B/C | |
| MER | ≥37db | ||
| RF frequency | 96~864MHz, 1KHz step | ||
| RF output level | -35~-5dBm , 0.1dBm step | ||
| SR | 5.0Msps~7.0Msps, 1ksps step | ||
| Constellation | 16/32/64/128/256QAM | ||
| Bandwidth | 6~8M | ||
| DTMBT | Standard | DTMB GB20600-2006 | |
| Constellation | 4QAM、16QAM、32QAM、64QAM | ||
| MER | ≥37dB | ||
| RF frequency | 96~864MHz，1kHz step | ||
| RF output level | -35dBm~-5dBm，0.1dB step | ||
| ATSC | Standard | ATSC A/53 | |
| MER | ≥37dB | ||
| RF frequency | 96~864MHz, 1KHz step | ||
| Constellation | 8VSB | ||
| ISDBT | Standard | ARIB STD-B31 | |
| FFT | 2K | ||
| Constellation | QPSK, 16QAM, 64QAM | ||
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 | ||
| Hierarchical mode | A | ||
| Bandwidth | 6M | ||
| System | Web/NMS | ||
| Chinese/English | |||
| Miscellaneous | Dimensions | 482mm×300mm×42mm | |
| Weight | 4kg | ||
| Temperature | 0~45℃(Operation)；-20~80℃(Storage) | ||
| Voltage range | AC100~240V，50/60Hz | ||
| Power consumption | <30W | ||

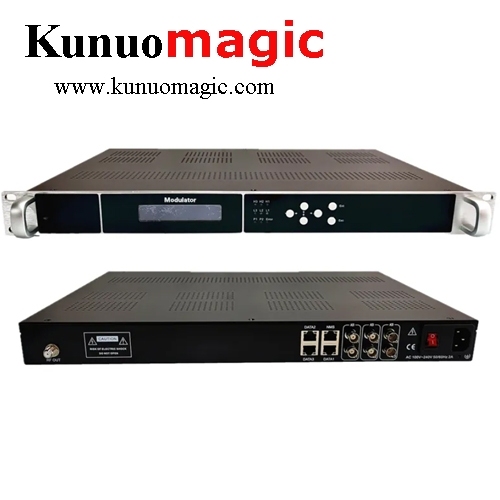

| Number | Interface Overview |
| 1 | LCD |
| 2 | Keys and indicator lights |
| 3 | RF out: Frequency Output |
4 |
NMS: Network Management System |
| DATA1: IP input ,RTMP/HTTP/RTSP/HLS/SRT protocol DATA2: IP output, MPTS over UDP/RTP protocol DATA3: IP input ,UDP/RTP protocol |
|
| 5 | ASI IN: Serial TS Input (Any Multiplex) |
| 6 | Power Switch |
