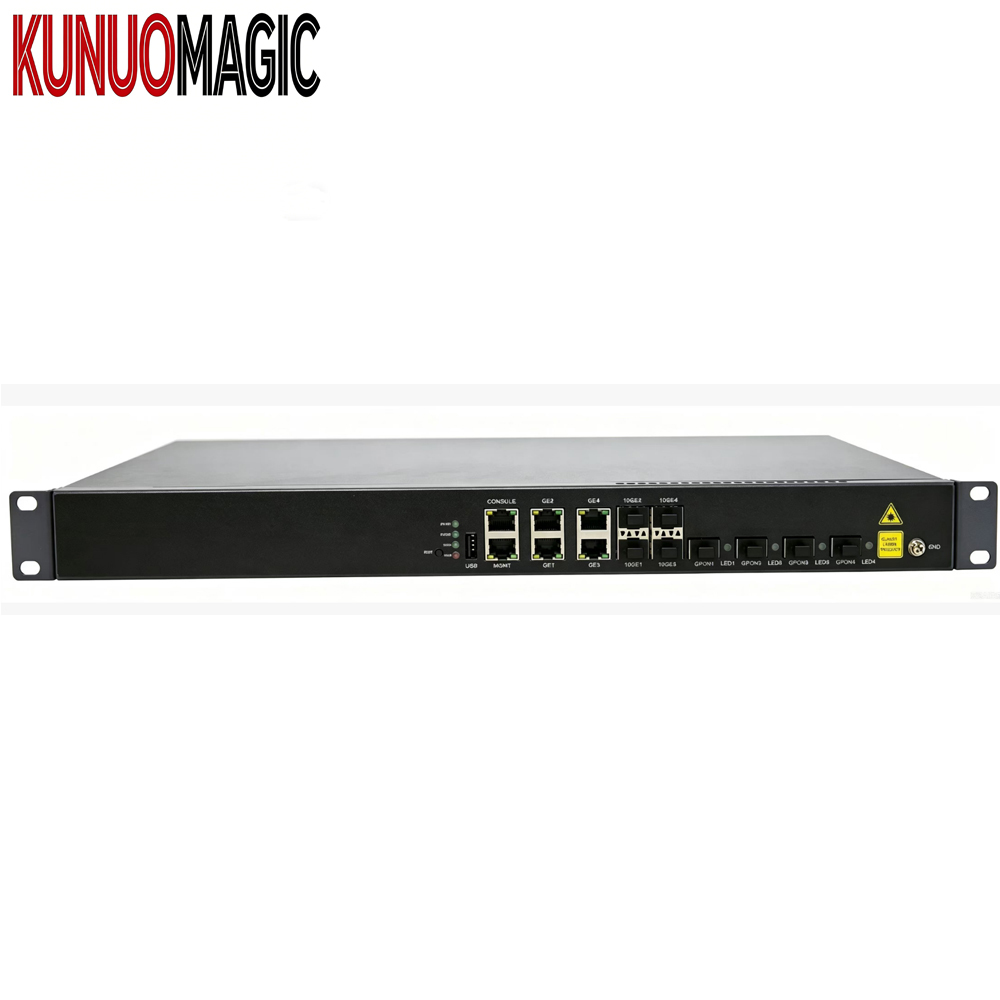

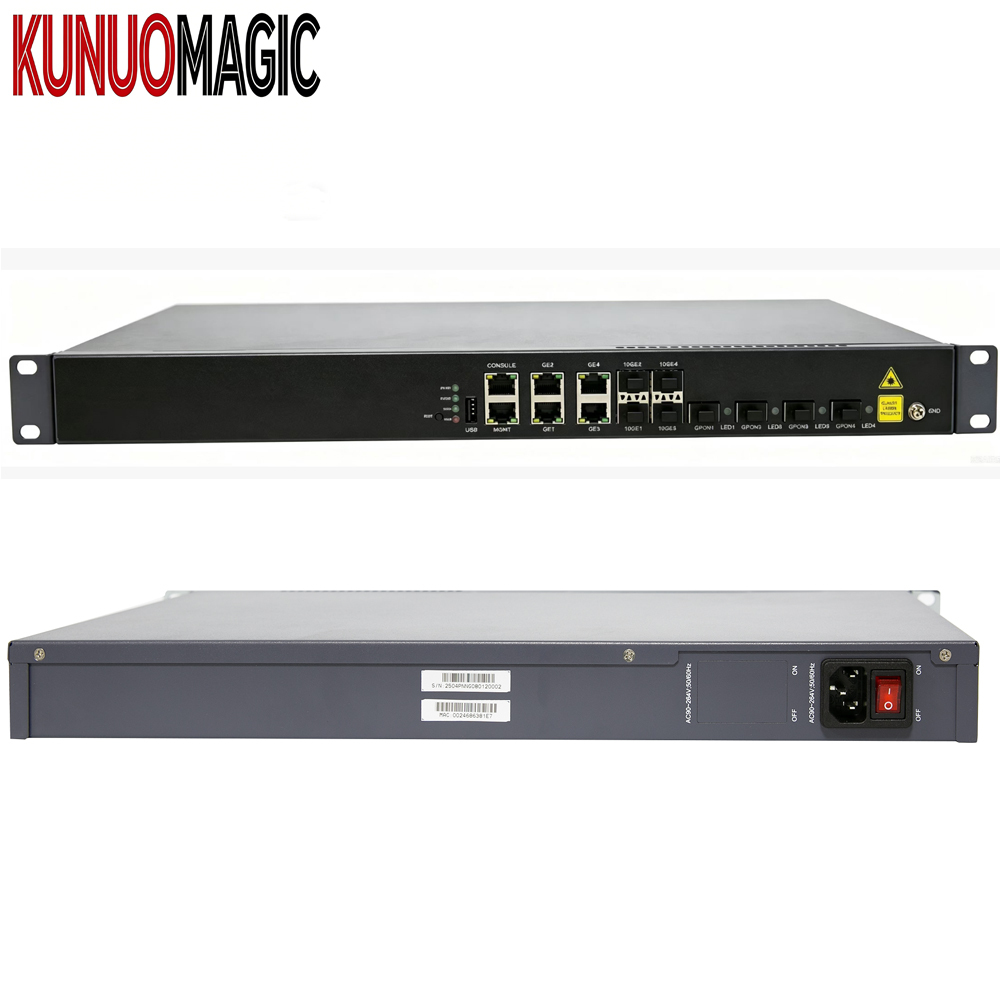

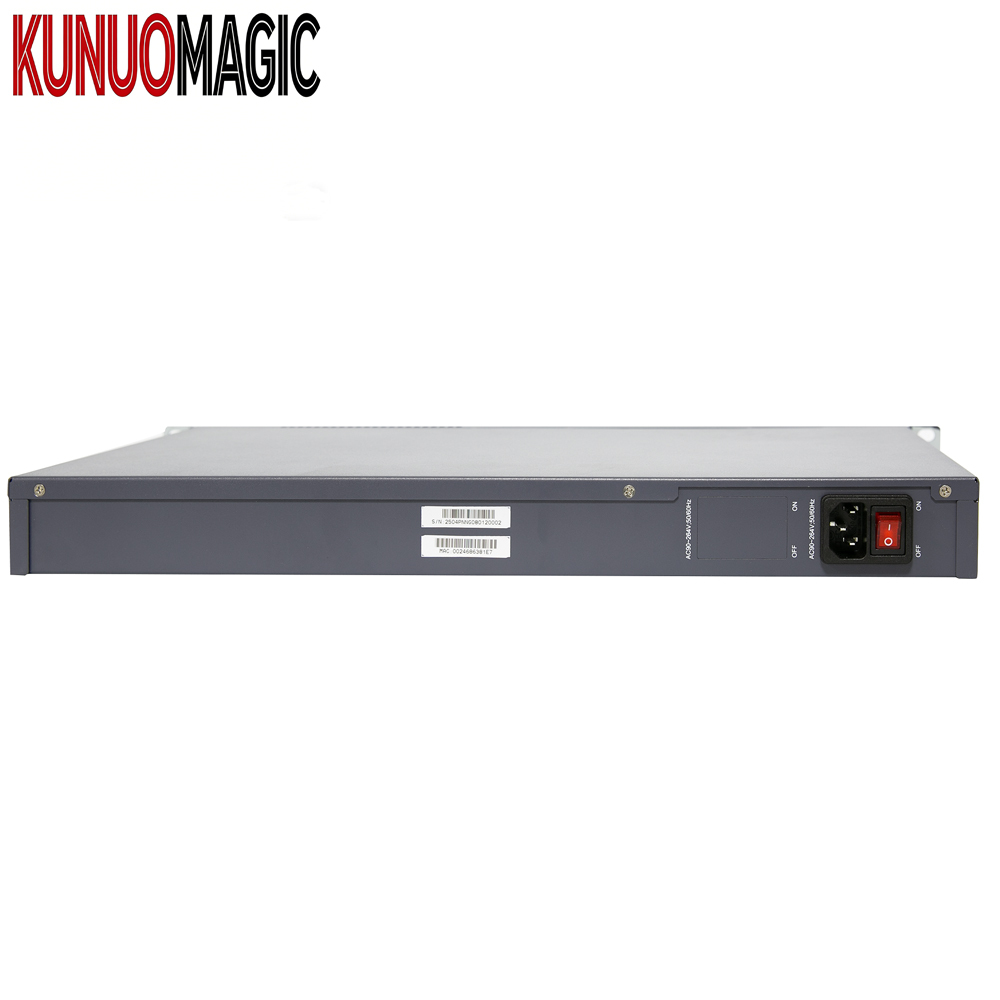

GPON OLT series is a 1U sized, high compact OLT device that includes three product forms: 4 /8 /16 GPON ports. Support FTTx fast access to meet the networking needs of various scenarios such as homes, parks, buildings, and enterprises. Implement one physical point, one optical fiber, and full service network access.

Application Scenarios

GPON OLT, as an optical access local equipment, is deployed in the access equipment room or access node and can provide a full service optical access platform. GPON is used to connect ONU devices to access various services of users, and Ethernet is used to access the carrier and core network of each service. GPON OLT can achieve FTTx access with a single device, with a clear network structure and low complexity, easy to deploy.

Highlights

• The maximum 160 Gbps exchange capacity is provided, with 4~16 GPON interface, and the single PON port has the maximum access to 128 terminals. The OLT can be allocated to the cell location to reduce the optical fiber occupancy and the occupancy of the computer room.
• It provides powerful L2, L3 and abundant VLAN features. Support 802.1Q VLAN function. Support VLAN tag/untag, VLAN passthrough, VLAN conversion, N:1 VLAN aggregation, VLAN priority tags, VLAN filtering, TPID modification and other functions. VLAN Stacking, selective QinQ and other enhanced VLAN functions conforming to the IEEE 802.1ad standard. All kinds of network planning and business application requirements of operators are met.
• Support EMS/WEB/SNMP/CLI/Telnet/SSH and other management methods. NM3000 network management system provides a user-friendly graphical interface for unified management and maintenance of GPON OLT and user devices.
• Support T-CONT DBA function and comply with G987.x standard.
• Support multi-service QoS mechanism. Both upstream and downstream directions can meet the configuration of SLA protocol parameters.

Multi-scenario access

• Support varies of telecom operations, management features such as MAC address binding and filtering, bandwidth control, VLAN, traffic control and so on.
• Supporting virtual local area network (VLAN) internal traffic exchange, meet the demand of enterprise and community network application.
• Supports non-convergence access of Internet Protocol television (IPTV) users. One sub rack supports 2048 multicast channels.

Smooth evolution

• Supports working in the L3 switching state. Support the static router and dynamic router protocols. To meet the operator's L3 business application and networking requirements.
• Supports IPv4 /IPv6 dual stacks and IPv6 multicast, enabling smooth evolution from IPv4 to IPv6.
