INTRODUCTION

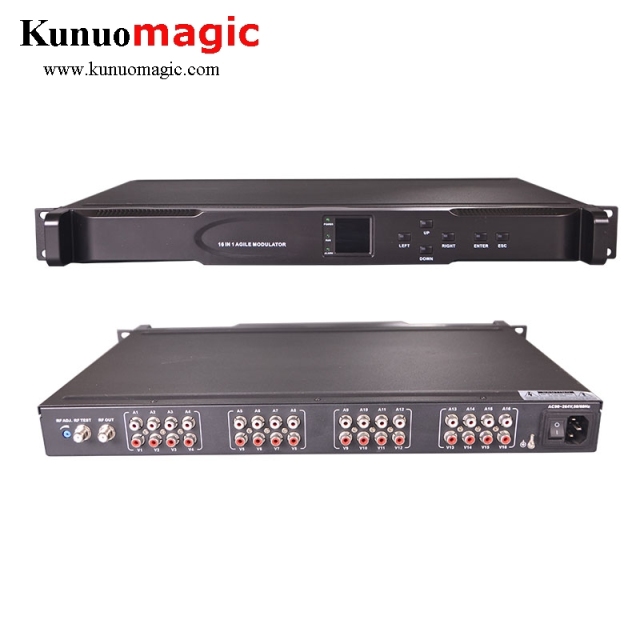

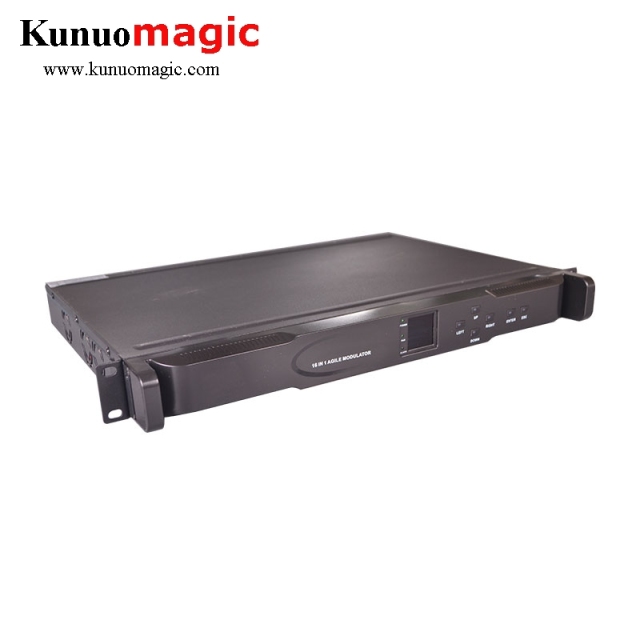

The is developed specifically for the commercial AV distribution market. It takes in 16 HD signals and then modulates the HD signals into any analog channels, providing an easy way to distribute high definition signals to the old TV systems. With pre-programmed channel list and its agile ability, the operators can set up the modulator
FEATURES
Converts HD video and audio signals to analogy NTSC or PAL channel
Rack mountable 1RU rack space with less space and less shipping cost
High picture quality thanks to the 16 cvbs input
Internal fans cooling system for long life span
SPECIFICATION
|
INPUT |
|||||
|
Input Connector |
CVBS*16 |
||||
|
VIDEO |
Input Resolution |
1920*1080_60P; 1920*1080_50P; 1920*1080_60i; |
|||
|
1920*1080_50i; 1280*720_60P; 1280*720_50P |
|||||
|
OUTPUT |
|||||
|
RF |
Output Connector |
F-Female |
|||
|
Output Frequency |
45 ~ 870 MHz |
||||
|
Output Level |
105dBμV |
||||
|
Adjust Range |
0 ~ 20dB |
||||
|
Output-band Rejection |
≥ 60dB |
||||
|
GENERAL |
|||||
|
Power Supply |
110V ~ 220V |
Power Consumption |
|
||
|
Shipping Weight |
6.5 KG |
Dimension |
1RU 19’’ |
||
